Dual Color Sequential LED Truck Tail Light / LED Rear Combination Light
Dual Color Sequential LED Truck Tail Light
Red Position & Brake Light with Amber Sequential Turn Signal for Trucks, Trailers and Pickups
Upgrade rear vehicle visibility with this 213mm Dual Color Sequential LED Truck Tail Light, designed for trucks, trailers, pickups, utility vehicles and commercial vehicle applications.
This compact LED rear light combines three essential lighting functions in one housing: red position light, red brake light and amber sequential turn signal. The flowing amber indicator provides a clear directional signal, while the red outer light supports both position and braking functions.
With a slim 213mm housing, M6 bolt mounting and a 500mm pre-wired harness, the light is suitable for OEM projects, vehicle modification, trailer builds and aftermarket replacement.

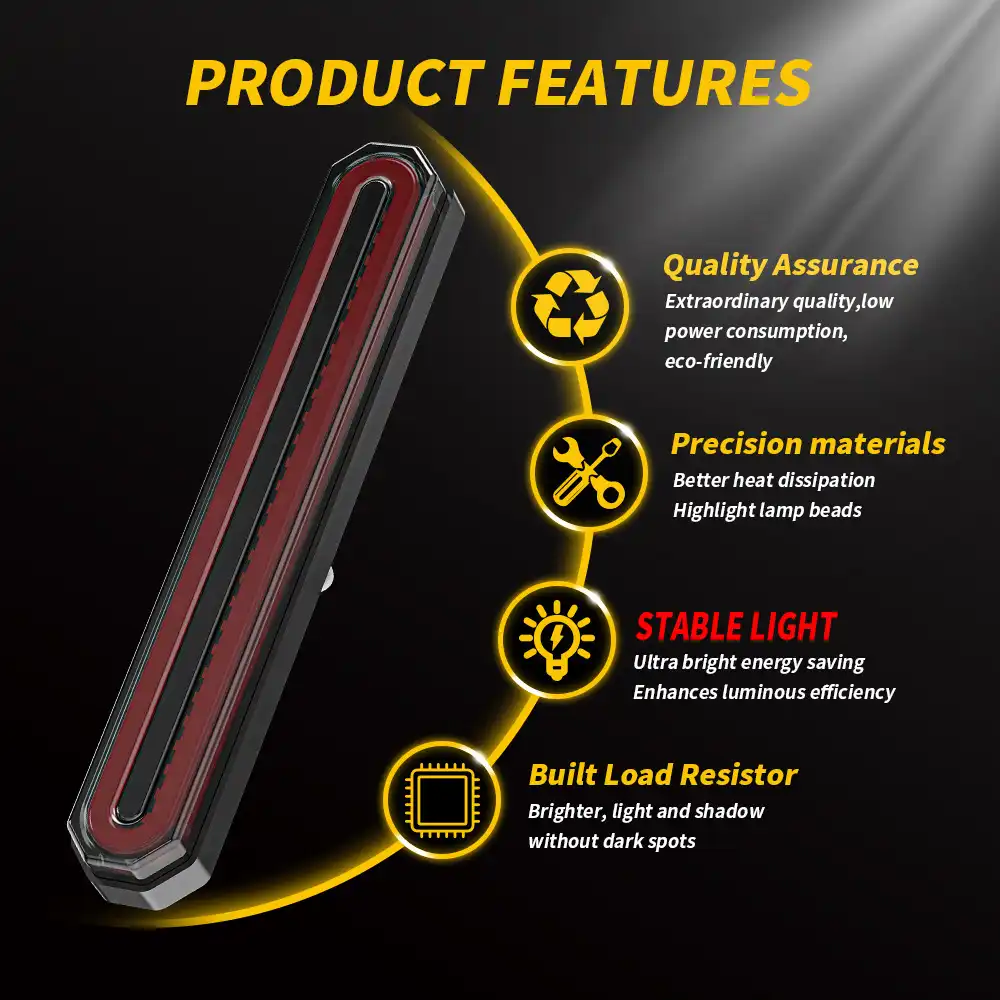

Key Features
Dual Color LED Design
The lamp integrates red and amber LED lighting into one compact rear light assembly.
Red light for position / tail light
Brighter red light for brake / stop light
Amber light for sequential turn signal
This multifunction design reduces the need for separate rear lighting units and creates a cleaner vehicle installation.

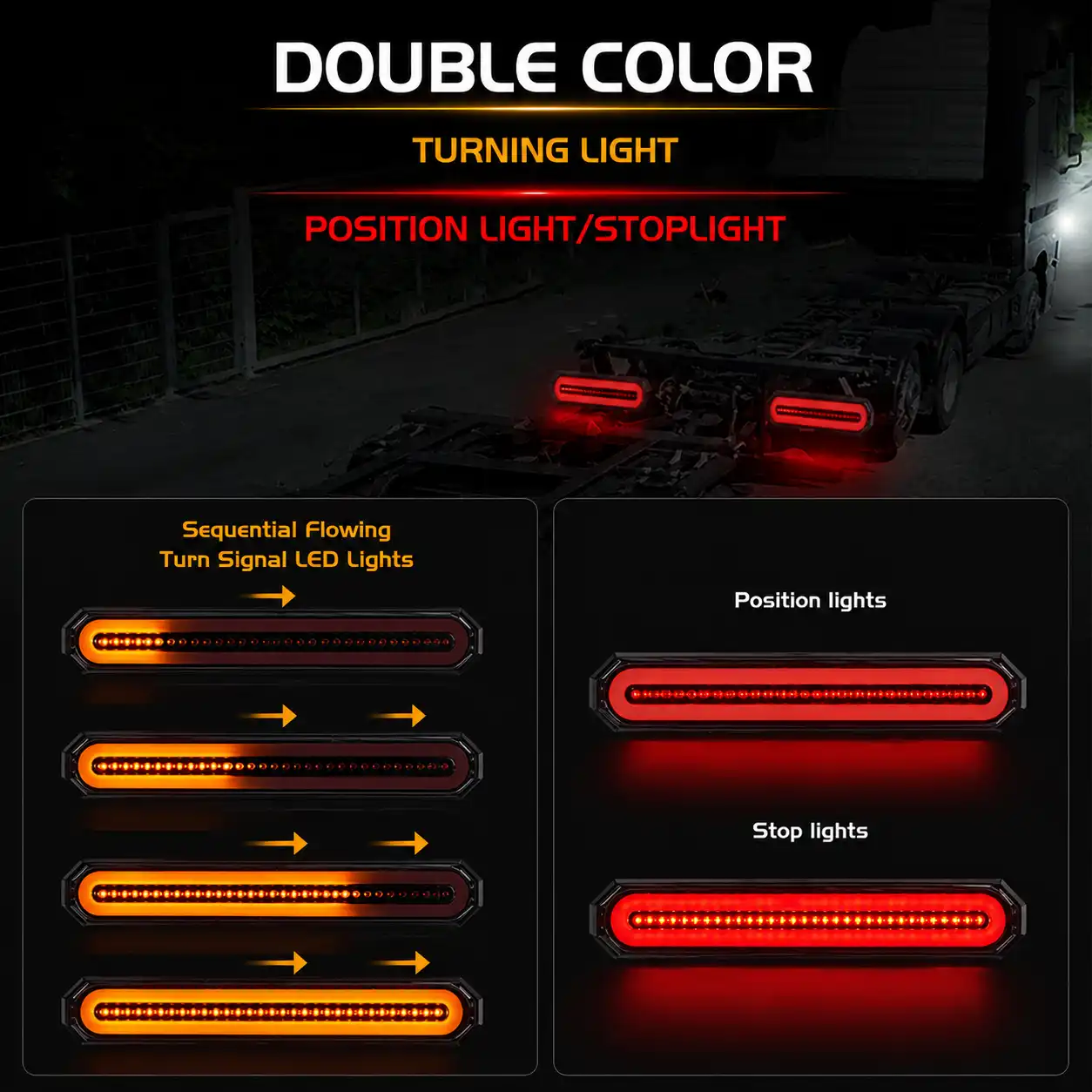

Sequential Amber Turn Signal
The amber LED section illuminates progressively to create a flowing sequential turn signal effect.
The dynamic lighting pattern improves directional visibility and gives trucks and trailers a more modern rear lighting appearance.
Red Position Light
The red lighting provides a clear rear position signal during normal driving conditions, helping improve vehicle visibility in low-light environments.
Bright Brake Light
When the brake circuit is activated, the red LED output increases in brightness to function as a brake / stop light, providing a clear warning signal to vehicles behind.

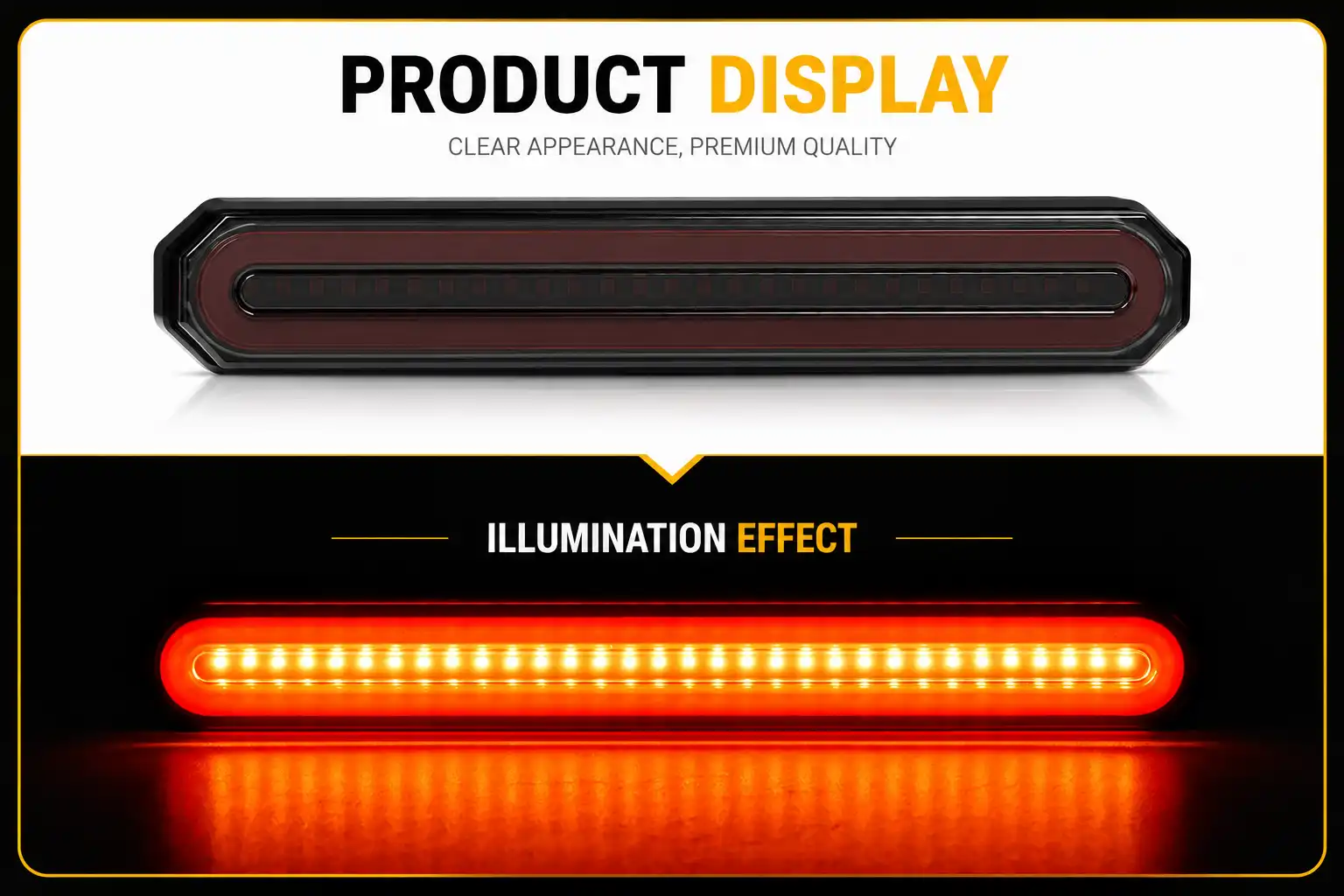

Stable LED Illumination
The LED layout is designed to provide consistent light output across the lamp surface, reducing visible dark areas and improving overall lighting uniformity.
Compact 213mm Housing
With an overall length of only 233mm / 9.17in, the lamp provides multiple lighting functions without requiring excessive installation space.
Its slim profile makes it suitable for a wide range of truck bodies, trailers, rear panels, bumpers and custom commercial vehicle projects.
M6 Bolt Mounting
The integrated M6 mounting bolts provide a secure and straightforward installation method.
The mounting hole distance is approximately 214mm / 8.43in, making the lamp suitable for both new installations and replacement projects where compatible dimensions are available.
500mm Pre-Wired Cable
Each light is supplied with approximately 500mm / 19.7in of wiring, allowing greater flexibility during installation.

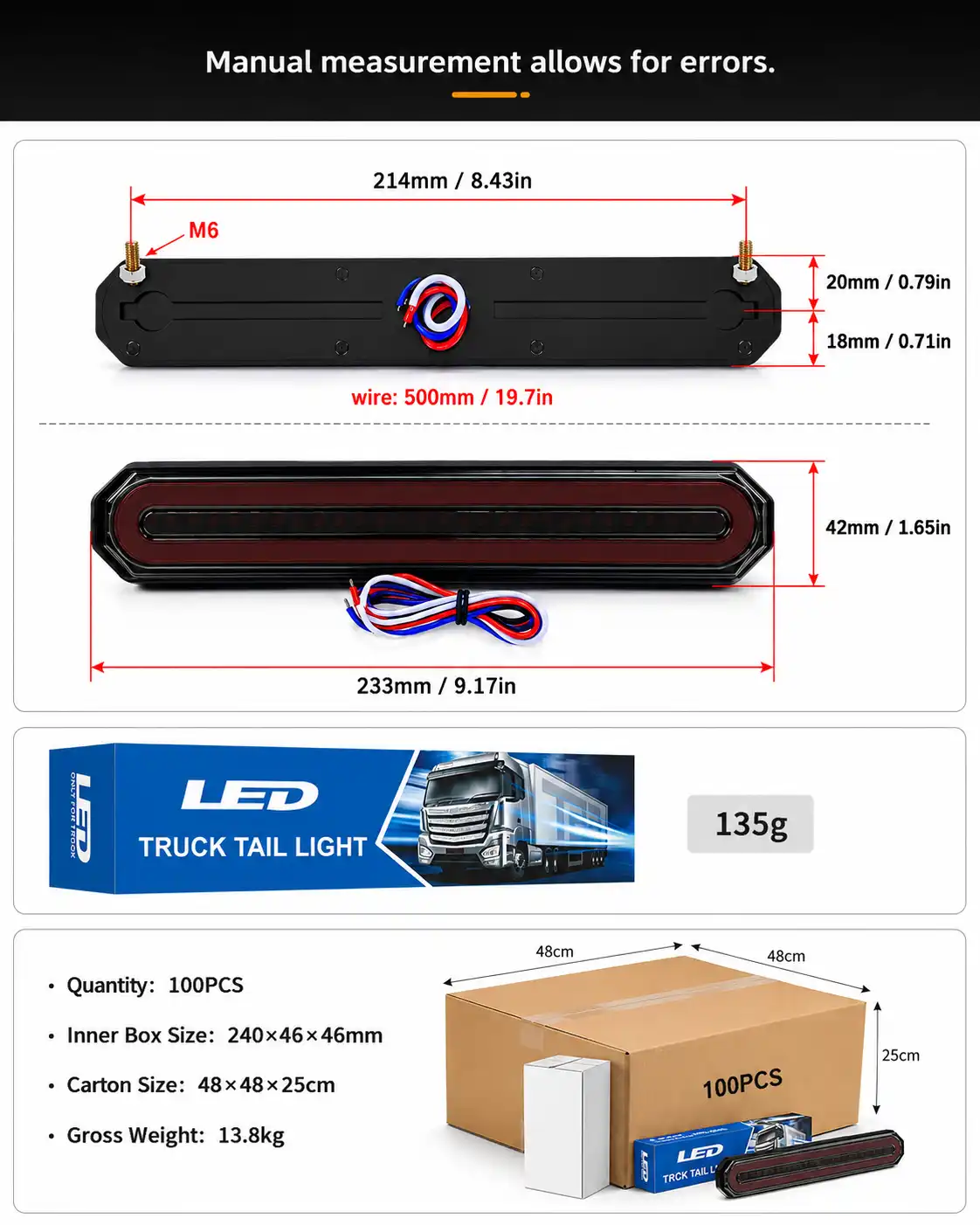

Product Specifications
| Specification | Details |
|---|---|
| Product Name | Dual Color Sequential LED Truck Tail Light |
| Product Type | LED Rear Combination Light |
| Light Colors | Red + Amber |
| Main Functions | Position Light / Brake Light / Sequential Turn Signal |
| Overall Length | 213mm / 9.17in |
| Overall Height | 42mm / 1.65in |
| Mounting Hole Distance | 214mm / 8.43in |
| Housing Thickness | 18mm / 0.71in |
| Bolt Projection | 20mm / 0.79in |
| Mounting Bolt | M6 |
| Wire Length | 500mm / 19.7in |
| Product Weight | Approx. 135g / pc |
| Installation Type | Bolt Mount |
| Recommended Applications | Trucks / Trailers / Pickups / Commercial Vehicles |
Dimensions are measured manually and slight variations may occur. Please refer to the actual product for final measurements.

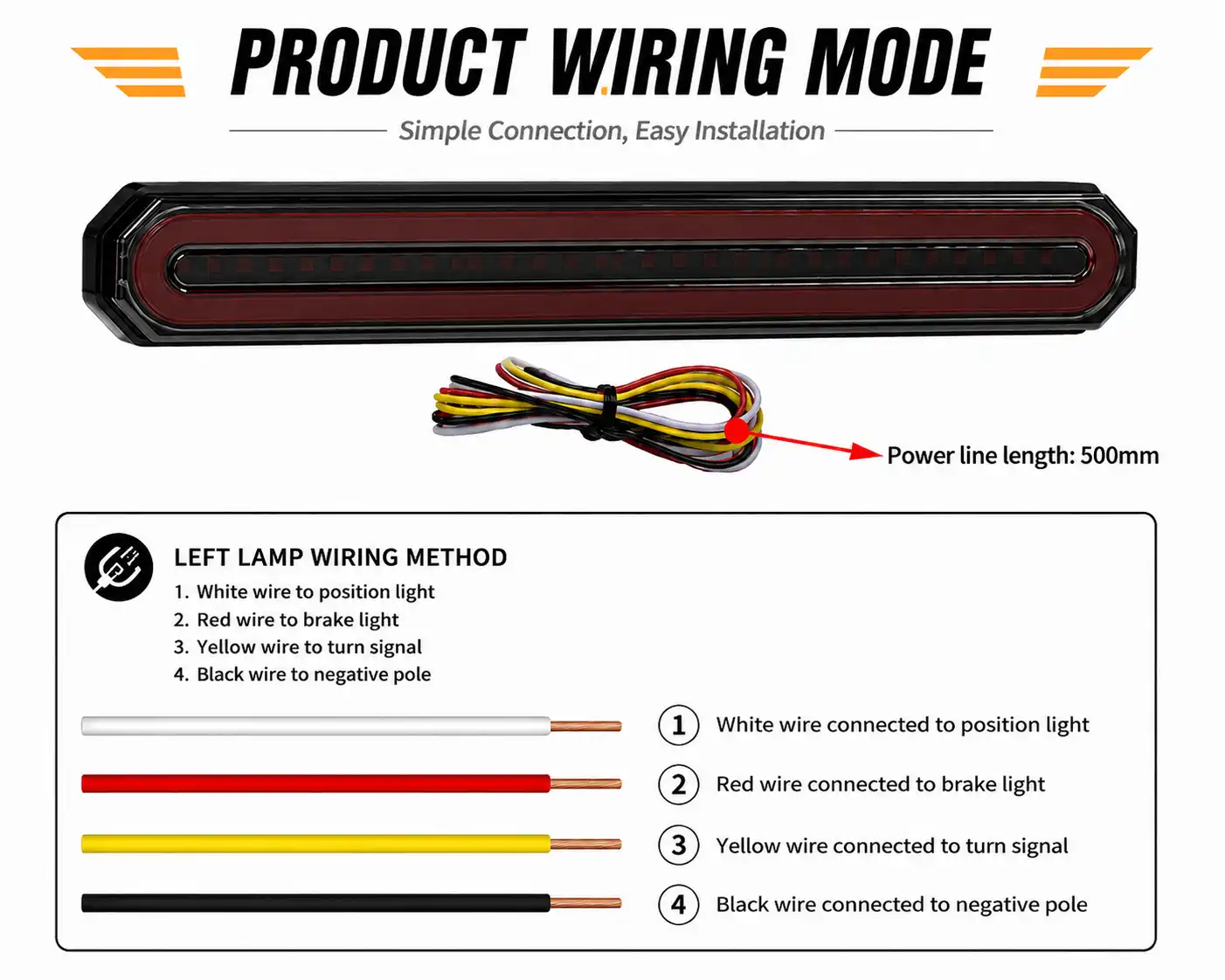

Wiring Guide
The lamp uses four wires for its different lighting functions.
| Wire Color | Function |
| White | Position Light |
| Red | Brake / Stop Light |
| Yellow | Turn Signal |
| Black | Negative / Ground |
Before installation, confirm the vehicle wiring configuration and electrical system.

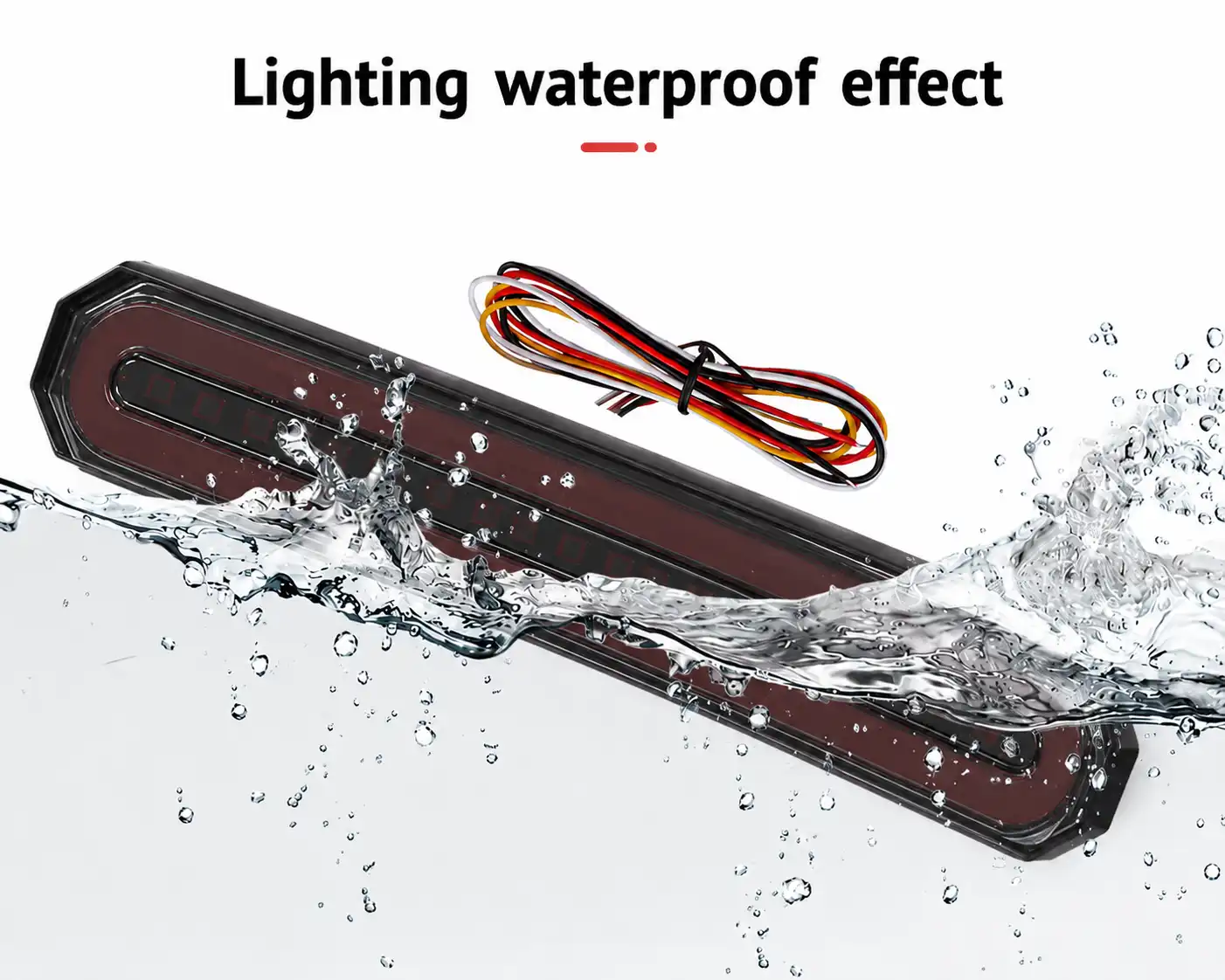

Waterproof Exterior Design
The lamp housing is designed for exterior vehicle applications and helps protect the internal lighting components against normal rain and road splash.
The sealed structure makes it suitable for use on trucks, trailers and commercial vehicles operating in changing outdoor conditions.
Note: No specific IP rating should be assumed unless separately confirmed.
Wide Vehicle Application
This LED truck tail light can be used in a variety of commercial and utility vehicle applications, including:
Pickup trucks
Light trucks
Heavy trucks
Trailers
Semi-trailers
Utility vehicles
Recovery trucks
Wreckers
Commercial vehicles
Custom truck bodies
Vehicle modification projects
Trailer conversion projects
Its compact dimensions and multifunction lighting design make it suitable for both OEM production and aftermarket replacement.
Why Choose This LED Truck Tail Light?
This light combines several important rear lighting functions in a single compact unit.
Instead of installing separate position, brake and turn signal lights, one lamp can provide all three functions while maintaining a clean and modern rear appearance.
The sequential amber turn signal adds strong visual recognition, while the red position and brake lighting supports essential rear vehicle signaling.
For truck accessory distributors, trailer manufacturers, commercial vehicle body builders and modification shops, this product provides a practical lighting solution with simple installation and flexible application.
Packaging Information
Individual Product
Product Weight:
Approx. 135g / pc
Inner Box Size:
240 × 46 × 46mm
Master Carton
Quantity:
100 PCS / Carton
Carton Size:
48 × 48 × 25cm
Estimated product net weight based on 100 pieces is approximately 13.5kg, excluding packaging materials.
Final carton gross weight should be confirmed before shipment.
Suitable for OEM and Wholesale Orders
This LED truck rear light is suitable for:
Truck accessory wholesalers
Trailer manufacturers
Commercial vehicle parts distributors
Pickup accessory dealers
Truck body manufacturers
Vehicle modification companies
Fleet equipment suppliers
Aftermarket lighting distributors

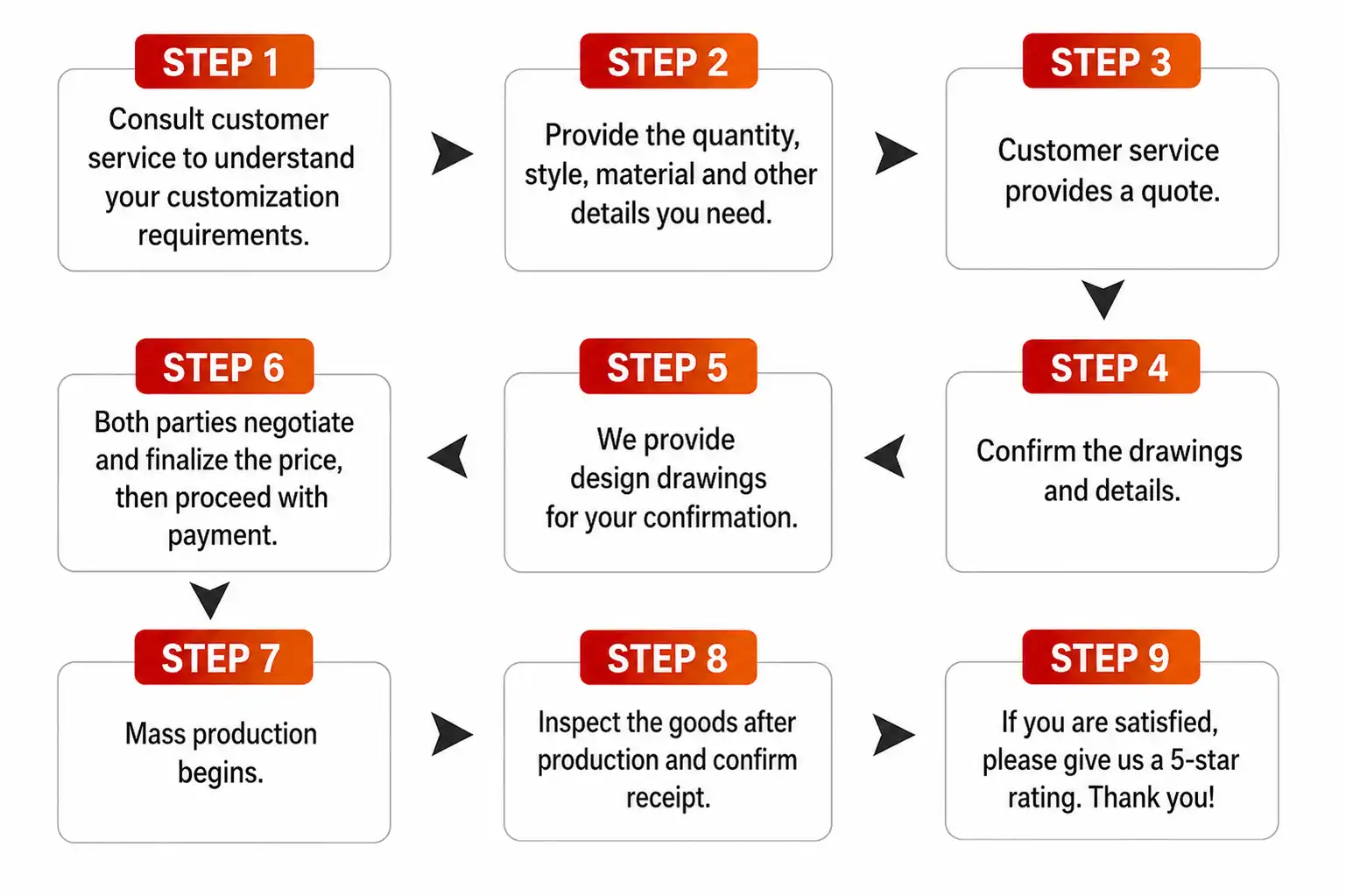

Bulk packaging and OEM requirements can be discussed according to order quantity and project requirements.
Frequently Asked Questions
What functions does this LED truck tail light have?
The lamp combines position light, brake light and sequential turn signal functions in one housing.
What colors does the light use?
The product uses red and amber lighting. Red is used for position and brake functions, while amber is used for the sequential turn signal.
What is the size of the tail light?
The overall lamp size is approximately 233mm long and 42mm high.
What is the mounting distance?
The mounting hole distance is approximately 214mm / 8.43in.
What type of mounting bolts are used?
The lamp uses M6 mounting bolts.
How long is the wiring harness?
The supplied wire length is approximately 500mm / 19.7in.
Is this light suitable for trailers?
Yes. The lamp is suitable for trucks, trailers, pickups and other commercial vehicle applications, provided the mounting dimensions and vehicle electrical configuration are compatible.
Is the light waterproof?
The housing is designed for exterior vehicle use and resistance to normal rain and road splash. A specific IP waterproof rating should only be stated if separately confirmed.
